The TECH line of Military Grade Workstations range in sizes from 6.4 inch pc104 based computing solutions to full sized ATX style motherboard configurations used in our 20.1 inch computer workstations. All workstations are designed and tested to the same current Mil spec standards as our full line of Rugged Displays. Military Grade Workstation products are certified for Shock (Mil-S-901D/Mil-STD-810E), vibration (Mil-STD-167-1a, Type-1), EMI (Mil-STD-461E) or are currently in process of receiving certification. Extended operating temperature available and drip proof(Mil-STD-810E) certifications upon request.

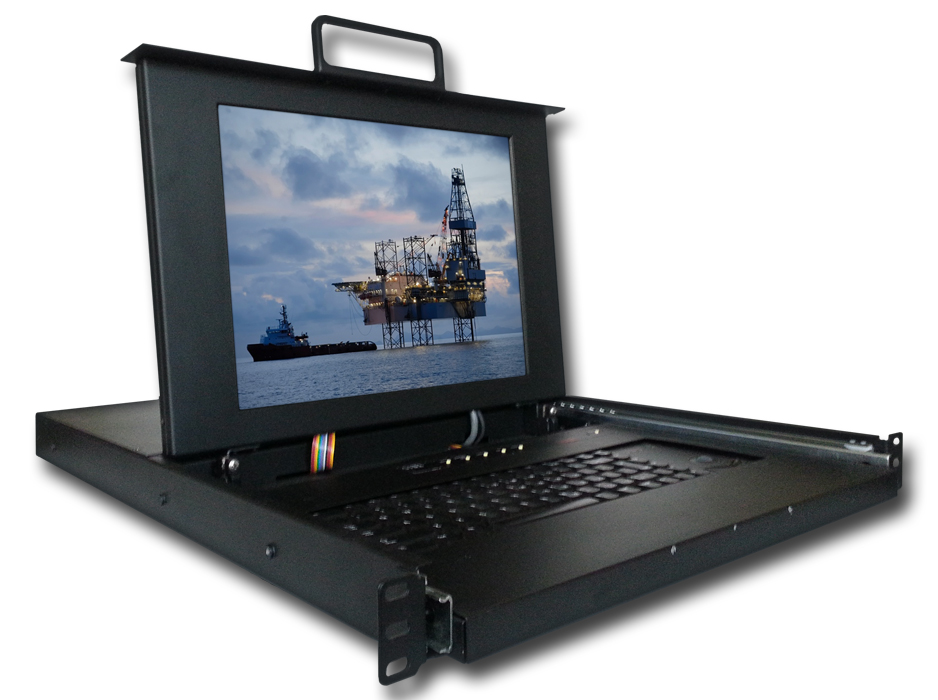

LCD
- Display Size : 15.0" diaganol
- Resolution : 1024 X 768 colored pixes
- Brightness : 300cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Finish : Grey or black powder coat standard
- Wegiht : Less than 30 lbs
- Mount : 1U 19 inch rack mount design
Compliance
- Plug and Play : VESA DDC1/2B
- Power Management : VESA DPMS copmliant
- Environmental : NEMA 4X copmliant

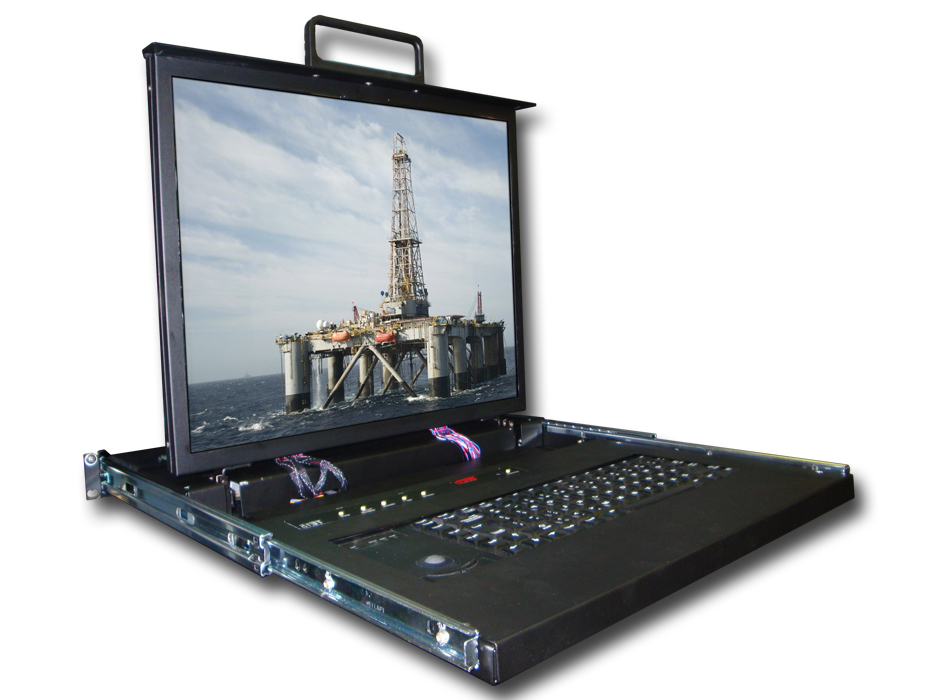

LCD
- Display Size : 19.0" diaganol
- Resolution : 1280 X 1024 colored pixes
- Brightness : 450cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Finish : Grey or black powder coat standard
- Wegiht : Less than 30 lbs
- Mount : 1U 19 inch rack mount design
Compliance
- Plug and Play : VESA DDC1/2B
- Power Management : VESA DPMS copmliant
- Environmental : NEMA 4X copmliant

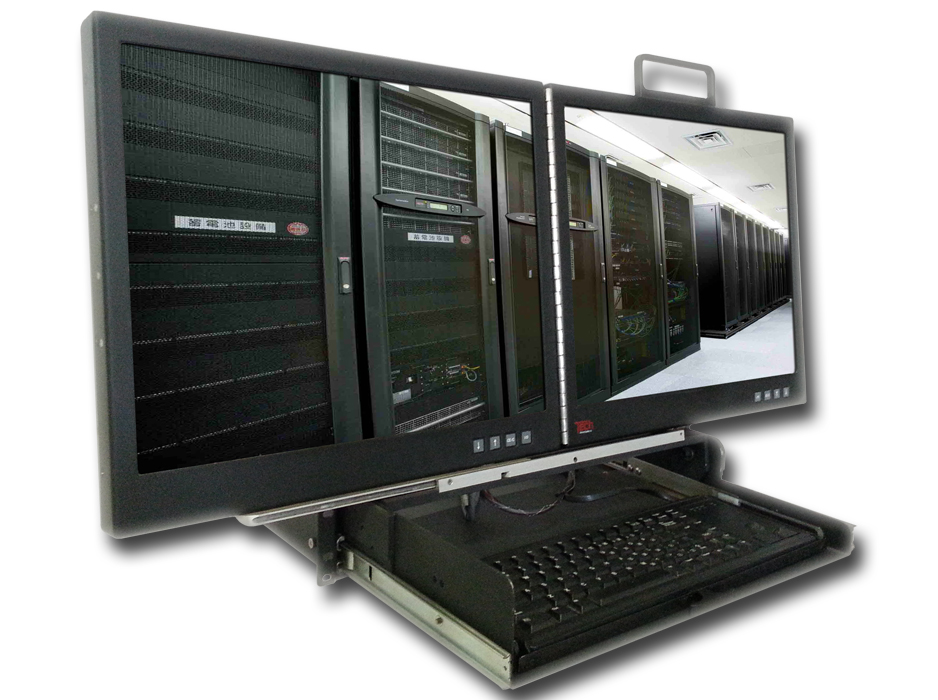

LCD
- Display Size : 19.0" diaganol (X2)
- Resolution : 1280 X 1024 colored pixes (X2)
- Brightness : 450cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Finish : Grey or black powder coat standard
- Wegiht : Less than 40 lbs
- Mount : 2U 19 inch rack mount design
Compliance
- Plug and Play : VESA DDC1/2B
- Power Management : VESA DPMS copmliant
- Environmental : NEMA 4X copmliant
LCD
- Display Size : 20.1" diaganol
- Resolution : 1600 X 1200 colored pixes
- Brightness : 300cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Finish : Grey or black powder coat standard
- Wegiht : Less than 30 lbs
- Mount : 1U 19 inch rack mount design
Compliance
- Plug and Play : VESA DDC1/2B
- Power Management : VESA DPMS copmliant
- Environmental : NEMA 4X copmliant
