The TECH line of Military Grade Workstations range in sizes from 6.4 inch pc104 based computing solutions to full sized ATX style motherboard configurations used in our 20.1 inch computer workstations. All workstations are designed and tested to the same current Mil spec standards as our full line of Rugged Displays. Military Grade Workstation products are certified for Shock (Mil-S-901D/Mil-STD-810E), vibration (Mil-STD-167-1a, Type-1), EMI (Mil-STD-461E) or are currently in process of receiving certification. Extended operating temperature available and drip proof(Mil-STD-810E) certifications upon request.

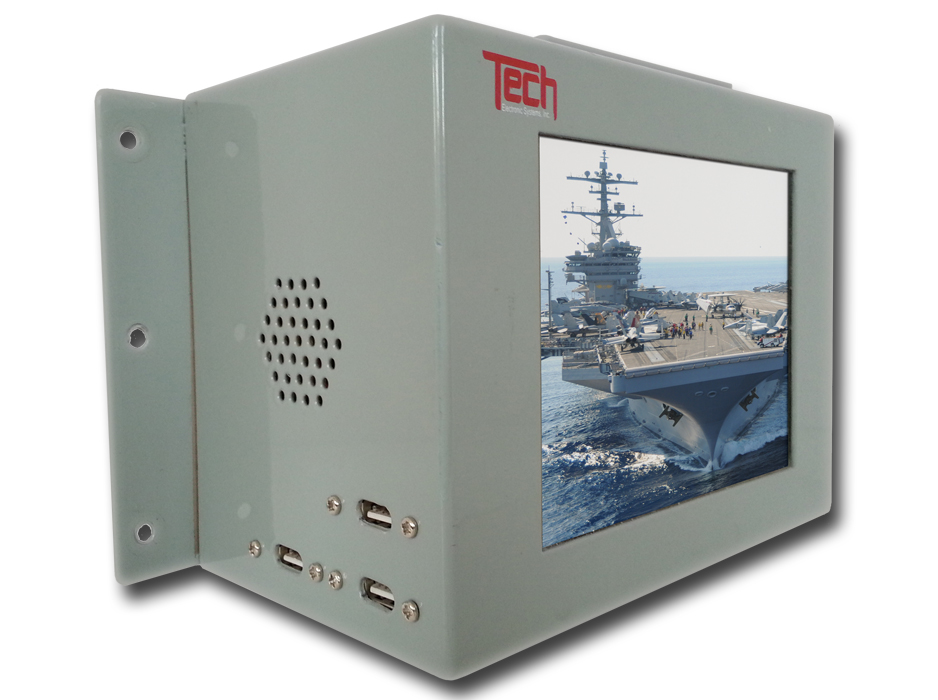

LCD
- Display Size : 163.2mm diaganol
- Resolution : 640 X 480 colored pixes
- Brightness : 250cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)5.75" x (W) 7.75" (D) 4.58"
- Wegiht : Less than 10 lbs
- Mount : Flange mount design / rear VESA mount optional
Qualifications
- Shock : Mil-S901D
- EMI : Mil-STD-461E
- Vibration : Mil-STD-167-1a, Type 1

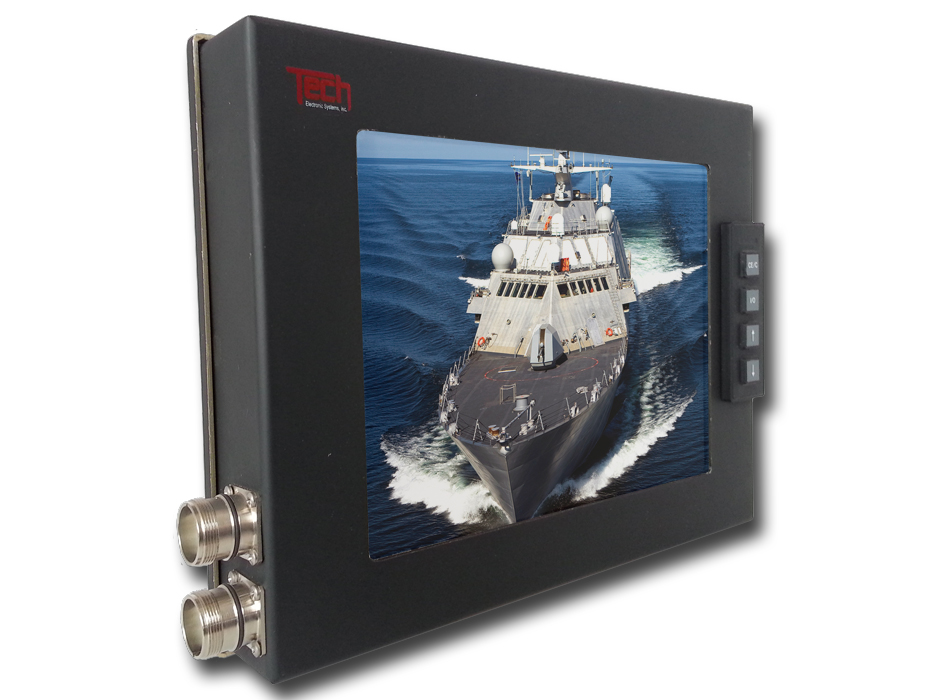

LCD
- Display Size : 260.00mm diaganol
- Resolution : 640 X 480 colored pixes
- Brightness : 450cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)9.38" x (W) 11.94" (D) 2.00"
- Wegiht : Less than 10 lbs
- Mount : Rear VESA mount standard
Qualifications (designed to)
- Shock : Mil-S901D
- EMI : Mil-STD-461E
- Vibration : Mil-STD-167-1a, Type 1

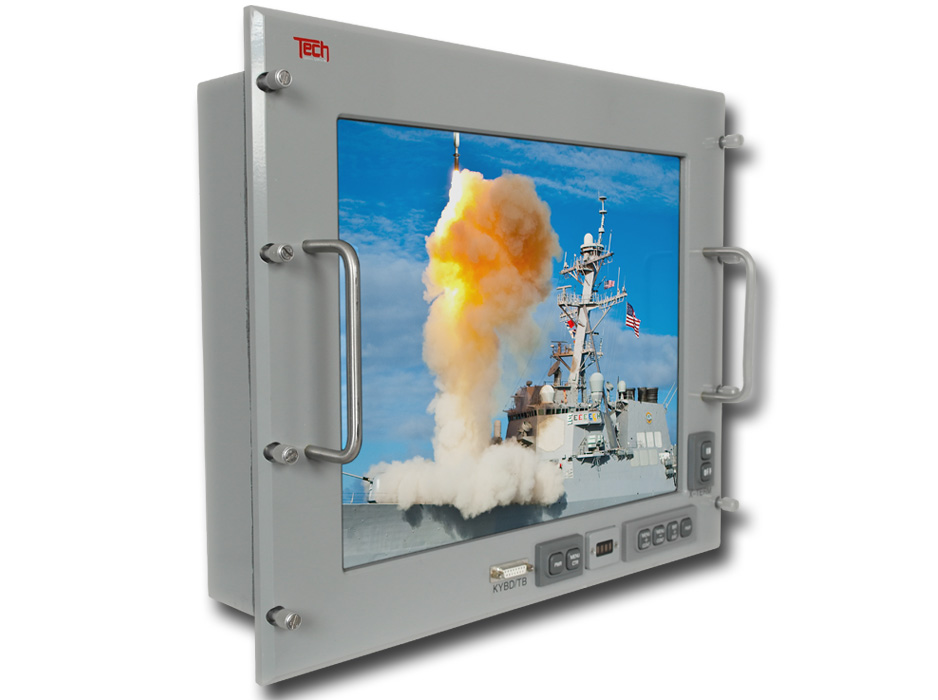

LCD
- Display Size : 259.74mm diaganol
- Resolution : 1280 x 1024 colored pixes
- Brightness : 250cd/m^2
Computer
- Processor : QEDRM5231 @ 165 MHz
- Processor (Graphics) : S3 Savage 4 Graphics Controller
- Flash Memory : 8 mb card
- Operating System : requires NC bridge 4.0
Mechanical
- Dimensions : (H)16.25" x (W) 19.00" (D) 4.5"
- Wegiht : Less than 30 lbs
- Mount : 19 inch rack mount
Qualifications
- Shock : Mil-S901D
- EMI : Mil-STD-461E
- Vibration : Mil-STD-167-1a, Type 1

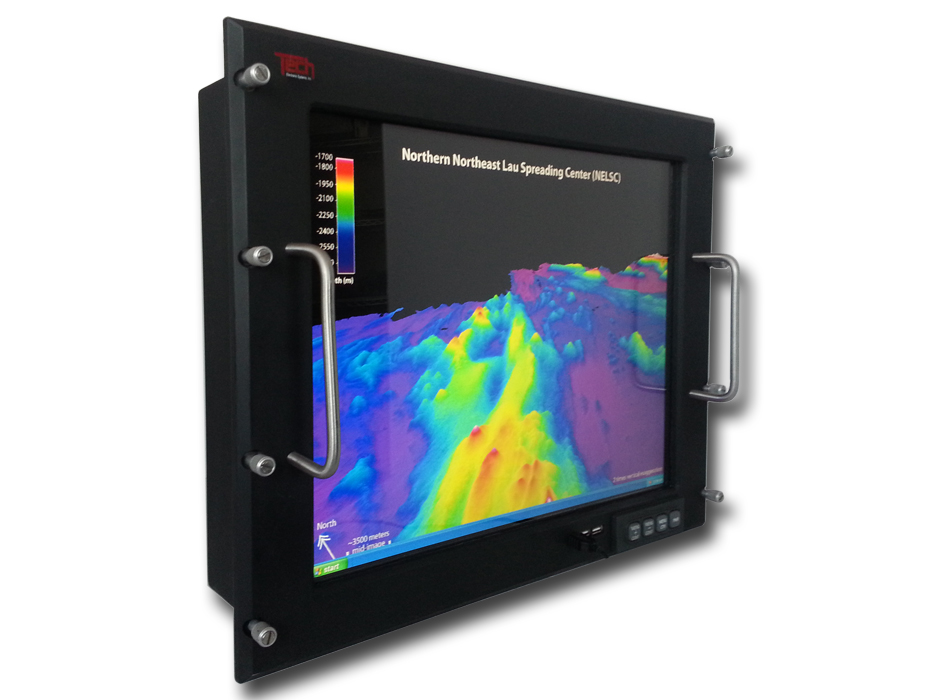

LCD
- Display Size : 481.90mm diaganol
- Resolution : 1280 X 1024 colored pixes
- Brightness : 450cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)15.72" x (W) 19.00" (D) 4.50"
- Wegiht : Less than 30 lbs
- Mount : 19 inch rack mount design
Qualifications
- Shock : Mil-S901D
- EMI : Mil-STD-461E
- Vibration : Mil-STD-167-1a, Type 1

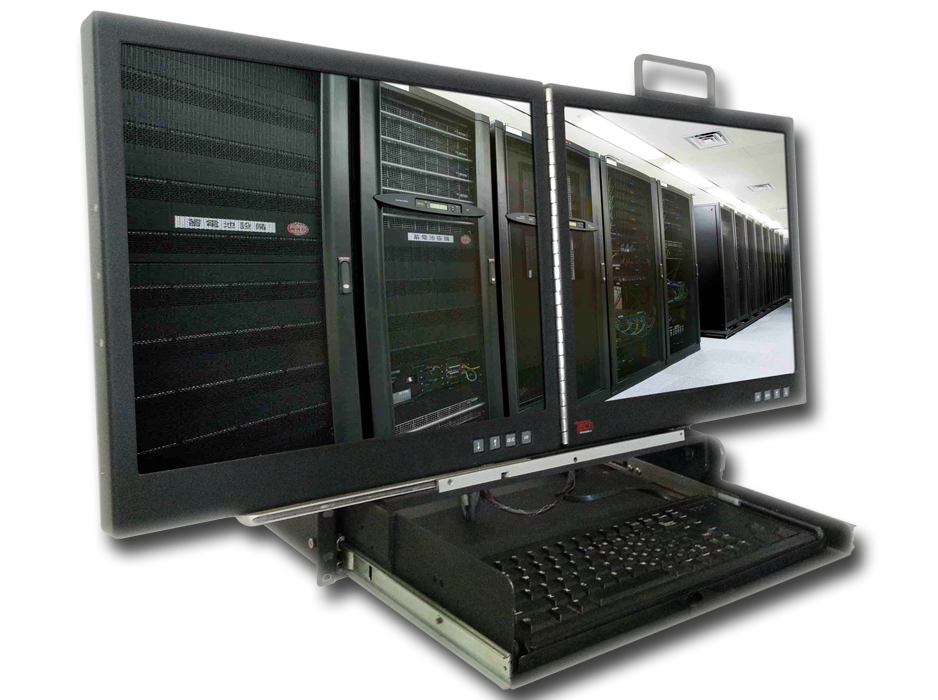

LCD
- Display Size : 481.90mm diaganol (x2)
- Resolution : 1280 X 1024 colored pixes (x2)
- Brightness : 450cd/m^2
Data Inputs
- VGA : (x2) D-sub
- NTSC : Optional BNC input
- BNC : (x2) 5-wire RGBHV sync
- DVI : (x2) Dvi-D input(optional)
Mechanical
- Dimensions : (when Stowed) (H)3.50" x (W) 19.00" (D) 22.82"
- Dimensions : (when fully deployed) (H)18.00" x (W) 33.10" (D) 31.00"
- Wegiht : Less than 35 lbs
- Mount : 2U 19" rack mount
Qualifications (designed to)
- Shock : Mil-S901D
- EMI : Mil-STD-461E
- Vibration : Mil-STD-167-1a, Type 1

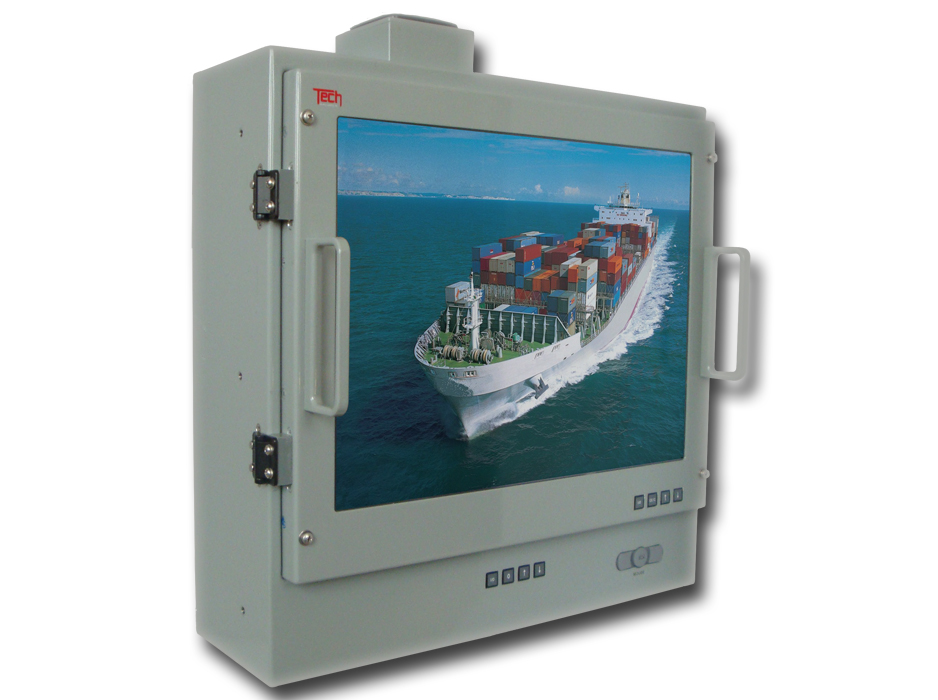

LCD
- Display Size : 510.54mm diaganol
- Resolution : 1600 X 1200 colored pixes
- Brightness : 450cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)20.00" x (W) 20.00" (D) 6.85"
- Wegiht : Less than 40 lbs
- Mount : Side mounting / 19 inch rack mount bracket opotional
Qualifications (designed to)
- Shock : Mil-S901D
- EMI : Mil-STD-461E
- Vibration : Mil-STD-167-1a, Type 1
