Military Grade Displays

Our full line of Rugged Military Displays are designed and tested to meet a wide variety of harsh environments. Our line of Military Displays all feature several standard environmental qualifications as required by application. Our standard environmental qualifications include shock, vibration, sand & dust, EMI, drip-proof, and extended operating temperatures.

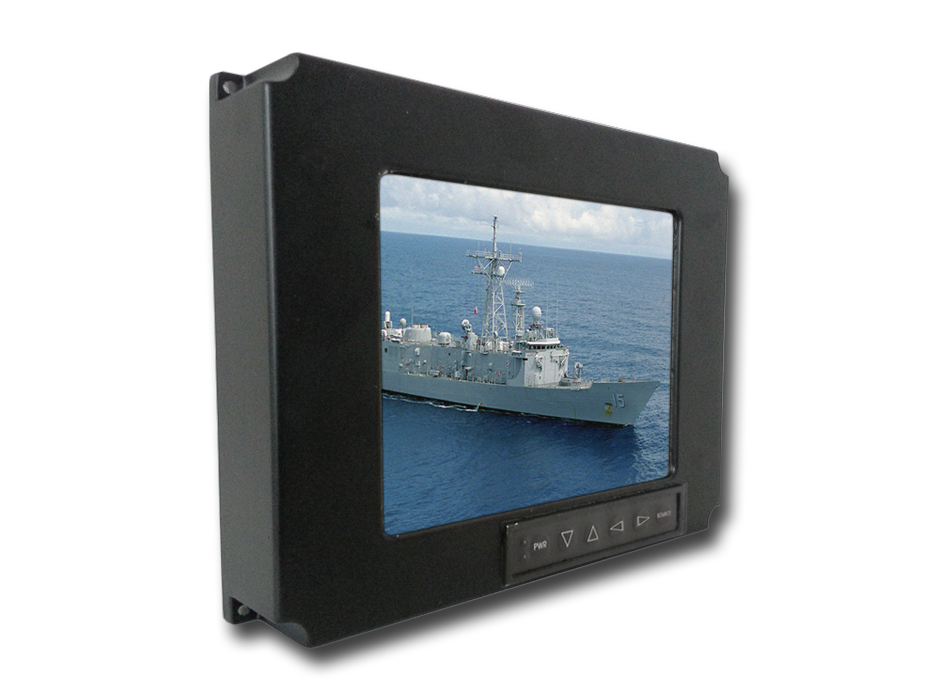

6.4" Water Tight NVIS Compatible Display.
P/N TE6.4XHTA

LCD

  • Display Size :  163.20mm diaganol
  • Resolution :  640 X 480 colored pixes
  • Brightness :  250cd/m^2

Mechanical

  • Dimensions : (H)6.02" x (W) 7.75" (D) 1.50"
  • Wegiht :  Less than 10 lbs
  • Mount :  VESA rear mount / flange mount / 19 inch rack mount via bracket

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

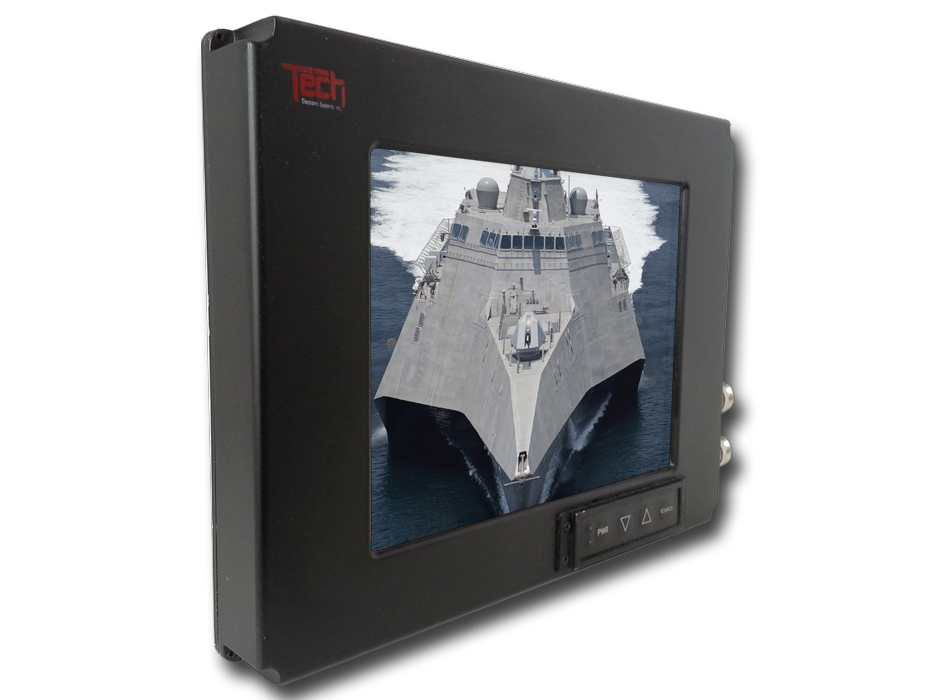

10.4" Water Tight NVIS Compatible Display.
P/N TE10.4XHTA

LCD

  • Display Size :  260.00mm diaganol
  • Resolution :  640 X 480 colored pixes
  • Brightness :  450cd/m^2

Mechanical

  • Dimensions : (H)9.60" x (W) 12.50" (D) 1.50"
  • Wegiht :  Less than 25 lbs
  • Mount :  VESA rear mount / flange mount / 19 inch rack mount via bracket

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

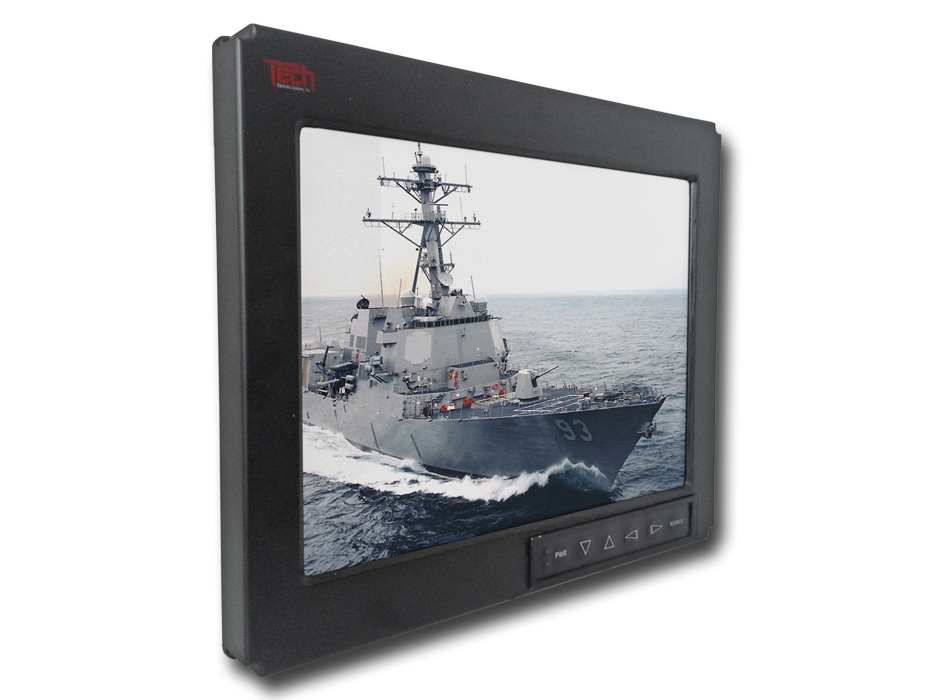

15" Water Tight NVIS Compatible Display.
P/N TE15.1XHTA

LCD

  • Display Size :  380.16mm diaganol
  • Resolution :  1024 X 768 colored pixes
  • Brightness :  300cd/m^2

Mechanical

  • Dimensions : (H)12.50" x (W) 14.50" (D) 1.50"
  • Wegiht :  Less than 15 lbs
  • Mount :  VESA rear mount / flange mount / 19 inch rack mount via bracket

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

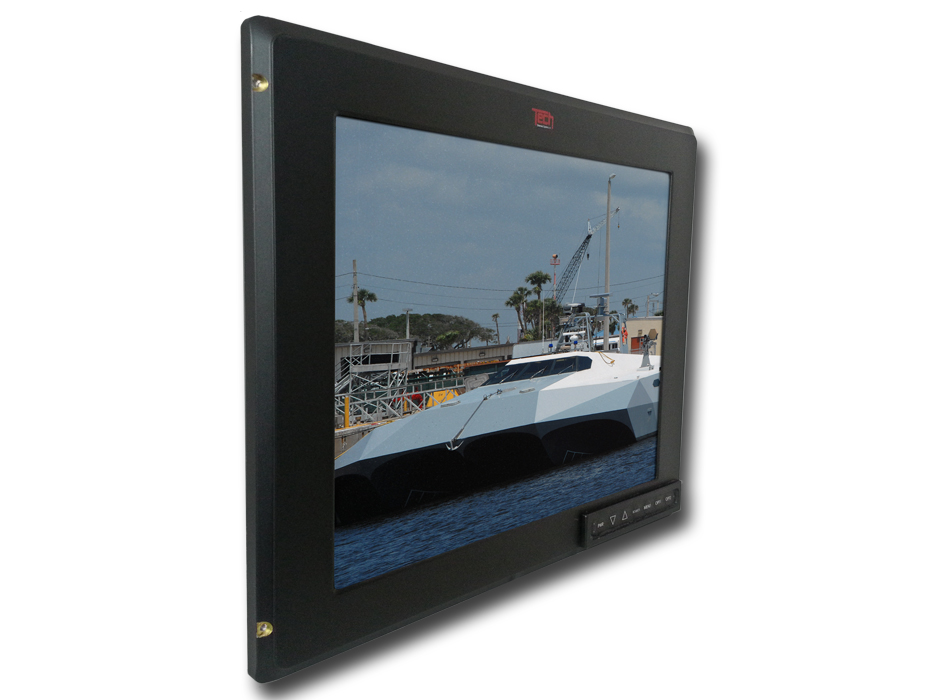

19" Water Tight NVIS Compatible Display.
P/N TE19.1XHTA

LCD

  • Display Size :  480.90mm diaganol
  • Resolution :  1280 X 1024 colored pixes
  • Brightness :  450cd/m^2

Mechanical

  • Dimensions : (H)15.80" x (W) 19.00" (D) 1.55"
  • Wegiht :  Less than 20 lbs
  • Mount :  VESA rear mount / 19 inch rack mount

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

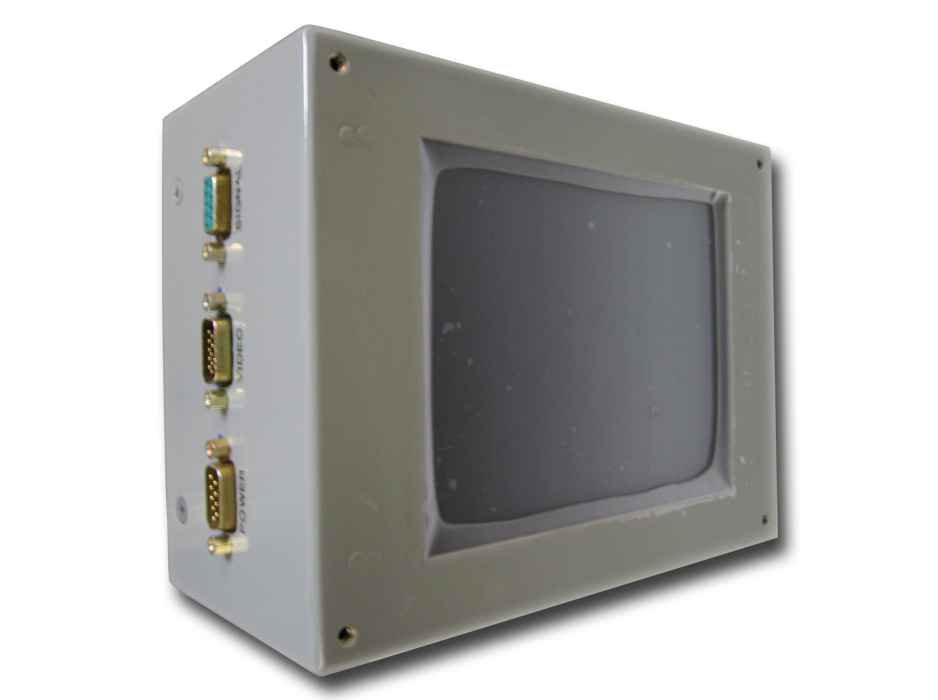

6.4" LCD Display Designed For B-1B.
P/N TE6.4BCGA

LCD

  • Display Size :  163.20mm diaganol
  • Resolution :  640 X 480 colored pixes
  • Brightness :  250cd/m^2

Mechanical

  • Dimensions : (H)5.75" x (W) 7.75" (D) 3.50"
  • Wegiht :  Less than 10 lbs
  • Mount :  Four corner front mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

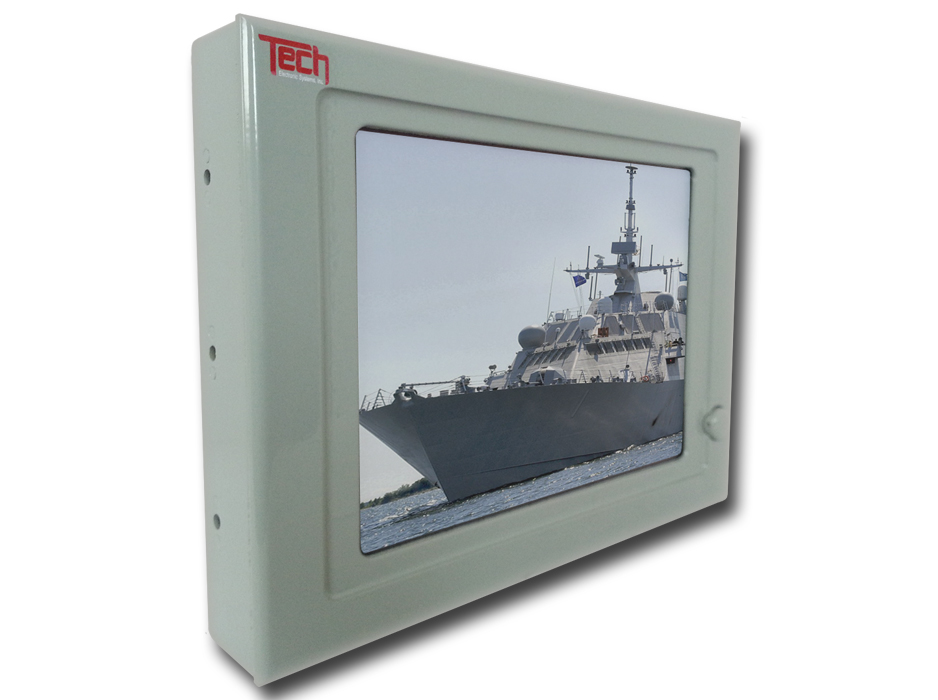

10.4" LCD Display Designed For Q-70. Continued Support for CLV1/CLV2/CLV3
P/N TE10.4CLV2AMLCD

LCD

  • Display Size :  260.00mm diaganol
  • Resolution :  640 X 480 colored pixes
  • Brightness :  450cd/m^2

Mechanical

  • Dimensions : (H)9.00" x (W) 12.00" (D) 1.88"
  • Wegiht :  Less than 10 lbs
  • Mount :  Six point side mounting system

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

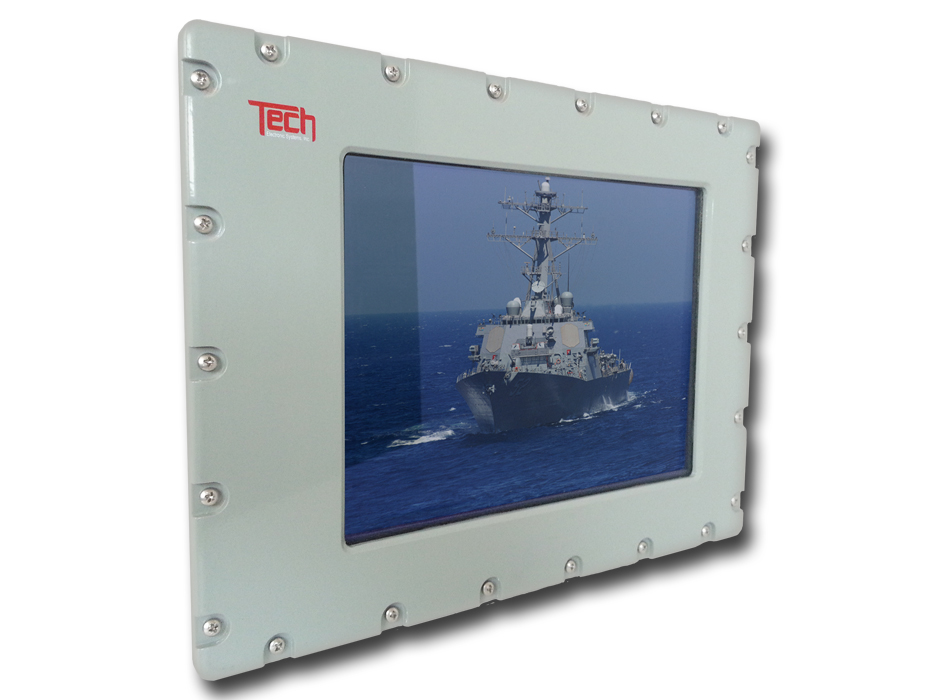

10.4" LCD Display Designed For VLS Systems.
P/N TE10.4CLV4-ALP

LCD

  • Display Size :  260.00mm diaganol
  • Resolution :  640 X 480 colored pixes
  • Brightness :  450cd/m^2

Mechanical

  • Dimensions : (H)9.62" x (W) 12.50" (D) 2.30"
  • Wegiht :  Less than 10 lbs
  • Mount :  Twenty two point front flange mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

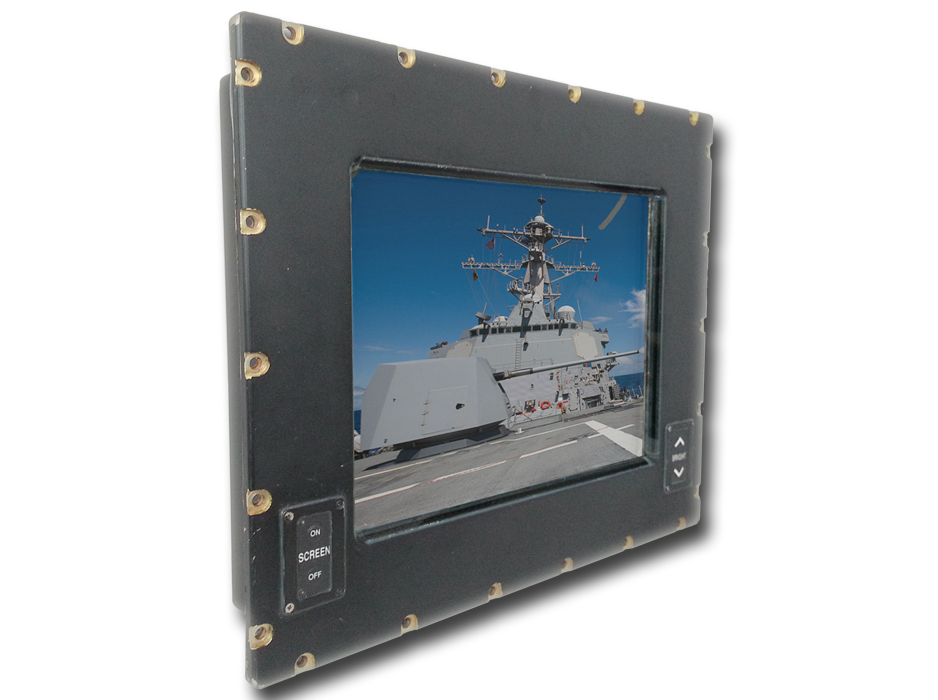

13.8" LCD Designed For Mk45 Gun Control. Same as NAV SEA 53711-7251319
P/N TE14CLV1-UD1-B

LCD

  • Display Size :  13.80inch diaganol
  • Resolution :  640 X 480 colored pixes
  • Brightness :  180cd/m^2

Mechanical

  • Dimensions : (H)14.50" x (W) 17.25" (D) 3.00"
  • Wegiht :  Less than 20 lbs
  • Mount :  Water tight flange mount with EMI gasket

Qualifications

  • Shock :  Mil-S901D (when mounted in assembly 7250720)
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1
15" LCD Designed For Mk45 Gun Control. continued support for 7251319 rev:1
P/N TE15CLV1-UD1-B

LCD

  • Display Size :  15.00inch diaganol
  • Resolution :  1024 X 768 colored pixes
  • Brightness :  200cd/m^2

Mechanical

  • Dimensions : (H)14.50" x (W) 17.25" (D) 4.00"
  • Wegiht :  Less than 25 lbs
  • Mount :  Water tight flange mount with EMI gasket

Qualifications

  • Shock :  Mil-S901D (when mounted in assembly 7250720)
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

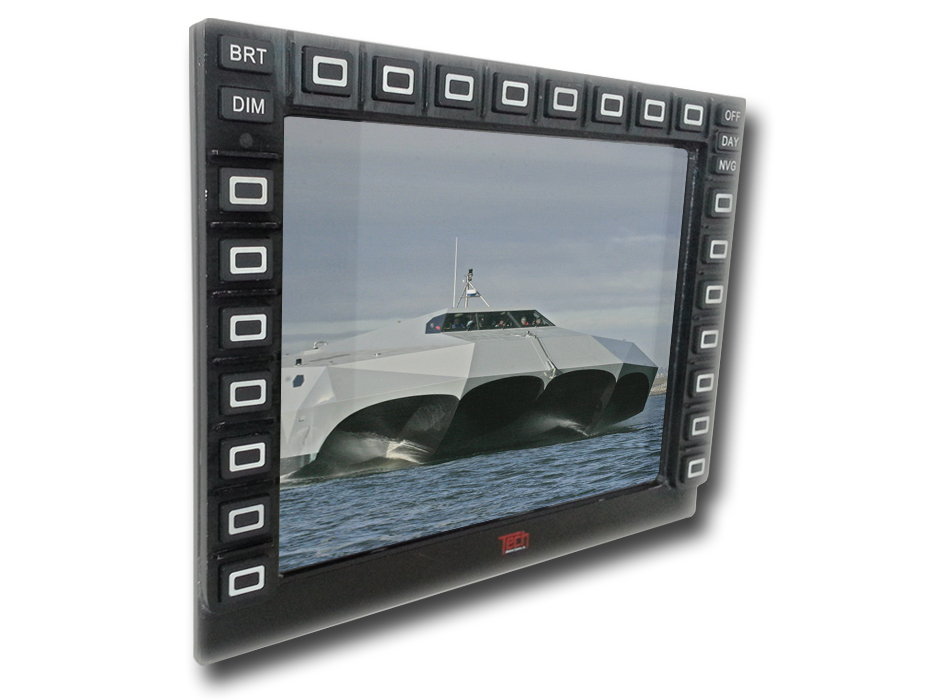

15" Water Tight NVIS Compatible Display
P/N TE15SXGA-MDCDS

LCD

  • Display Size :  380.16MM diaganol
  • Resolution :  1024 X 768 colored pixes
  • Brightness :  300cd/m^2

Mechanical

  • Dimensions : (H)11.65" x (W) 15.25" (D) 3.40"
  • Wegiht :  Less than 15 lbs
  • Mount :  VESA rear mount / 19 inch rack mount via bracket

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

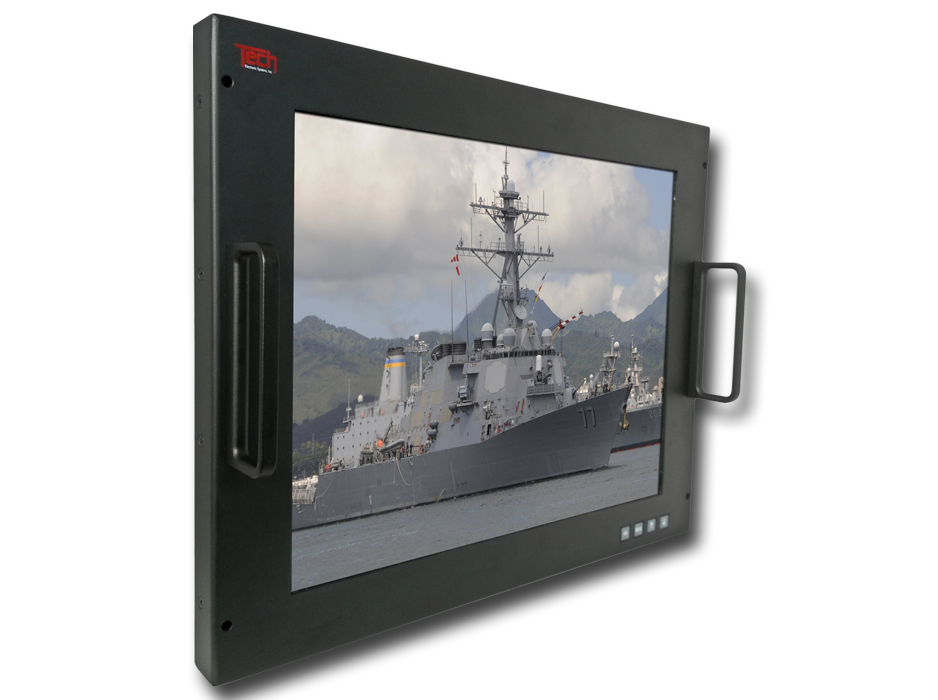

19" NAVSEA O5P Qualified LCD Display.
P/N TE19.1CXGA

LCD

  • Display Size :  481.9mm
  • Resolution :  1280 X 1024 colored pixes
  • Brightness :  450cd/m^2

Mechanical

  • Dimensions : (H)15.72" x (W) 19.00" (D) 2.98"
  • Wegiht :  Less than 20 lbs
  • Mount :  19 inch rack mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

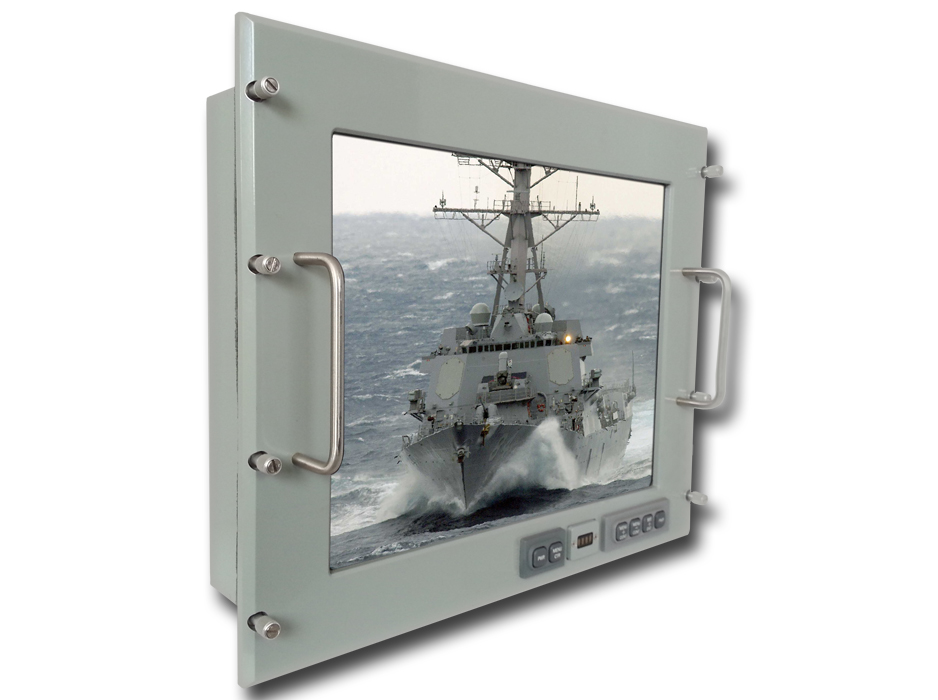

19" Rugged Rack Mount Display. Same as TE18CLSX
P/N TE19CLSX

LCD

  • Display Size :  481.90mm
  • Resolution :  1280 X 1024 colored pixes
  • Brightness :  450cd/m^2

Mechanical

  • Dimensions : (H)15.72" x (W) 19.00" (D) 4.50"
  • Wegiht :  Less than 25 lbs
  • Mount :  19 inch rack mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1
19" NAVSEA Approved Display, Fits Both 19" & 20" Lighted Writing Surfaces.
P/N TE19.1CXGA-0

LCD

  • Display Size :  481.90mm
  • Resolution :  1280 X 1024 colored pixes
  • Brightness :  300cd/m^2

Mechanical

  • Dimensions : (H)15.70" x (W) 18.96" (D) 2.98"
  • Wegiht :  Less than 25 lbs
  • Mount :  19 inch rack mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

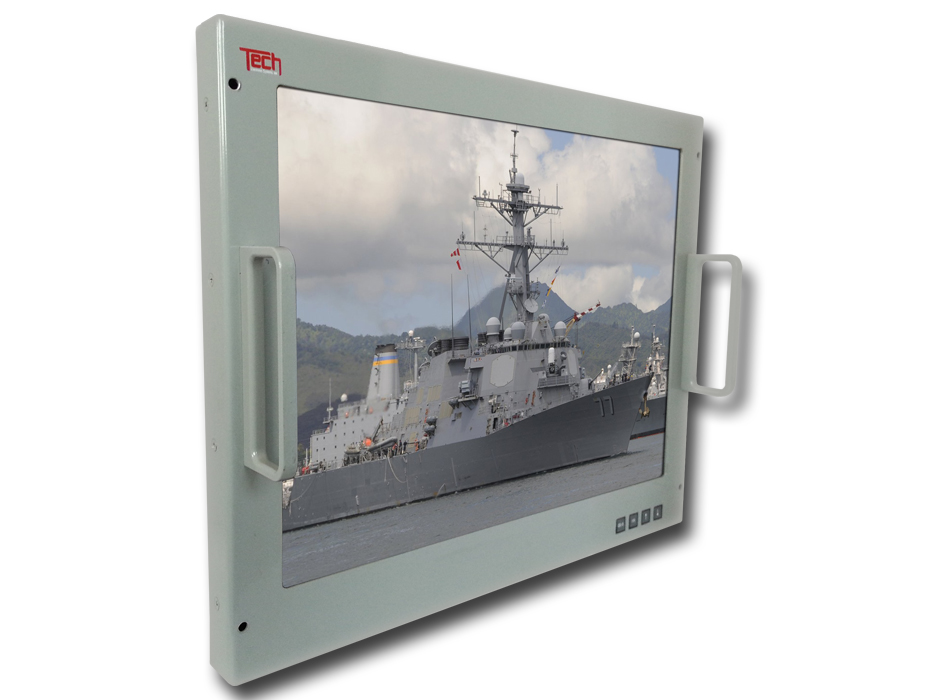

20.1" NAVSEA Approved Display.
P/N TE20.1UXGA

LCD

  • Display Size :  510.54mm
  • Resolution :  1600 X 1200 colored pixes
  • Brightness :  300cd/m^2

Mechanical

  • Dimensions : (H)15.72" x (W) 19.00" (D) 2.98"
  • Wegiht :  Less than 20 lbs
  • Mount :  19 inch rack mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

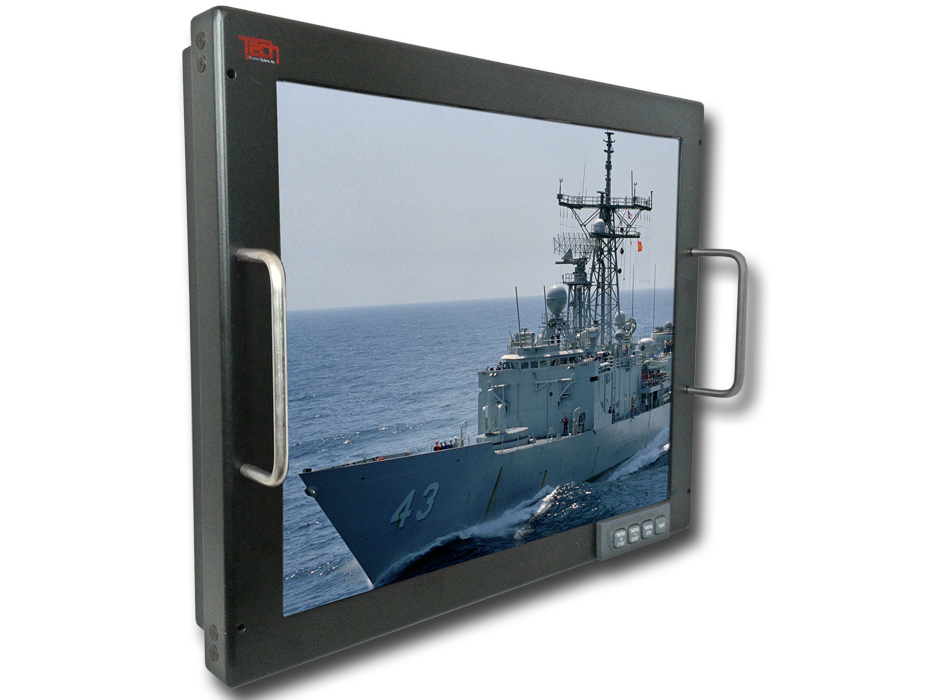

20.1" NAVSEA Approved Display. same as TE19.1CLSXE
P/N TE20.1CLSXE

LCD

  • Display Size :  510.54mm
  • Resolution :  1280 X 1024 colored pixes
  • Brightness :  300cd/m^2

Mechanical

  • Dimensions : (H)15.72" x (W) 19.00" (D) 2.98"
  • Wegiht :  Less than 20 lbs
  • Mount :  19 inch rack mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

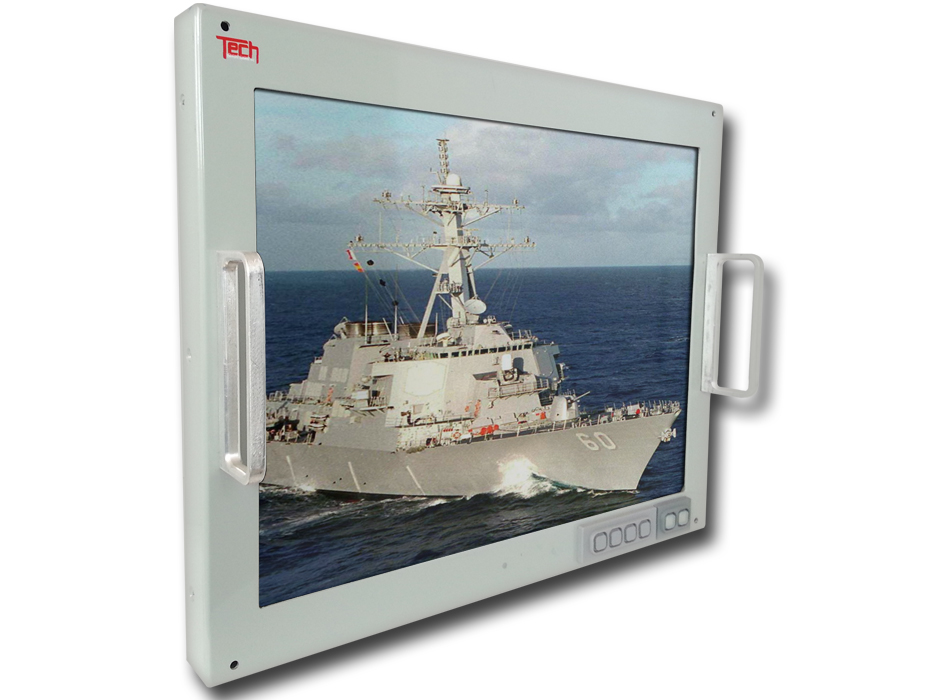

21.3" Display Designed For 19" Rack Mount Applications.
P/N TE21.3UXGA

LCD

  • Display Size :  540.00mm
  • Resolution :  1600 X 1200 colored pixes
  • Brightness :  300cd/m^2

Mechanical

  • Dimensions : (H)16.13" x (W) 19.72" (D) 3.25"
  • Wegiht :  Less than 25 lbs
  • Mount :  19 inch rack mount

Qualifications

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

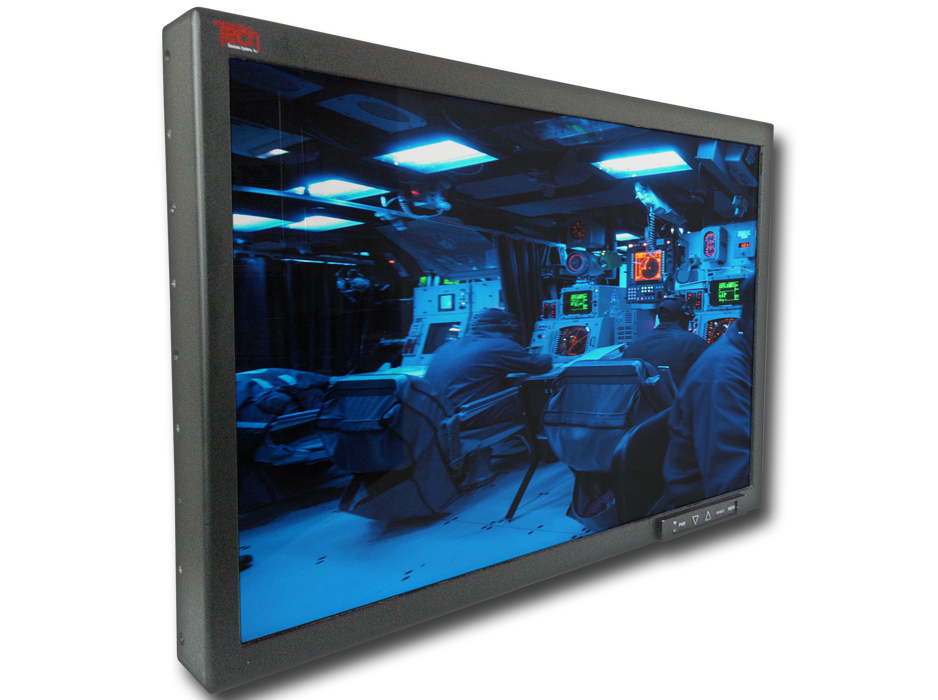

24" CEDS Console Compatible.
P/N NTE24WUXGA-CDS

LCD

  • Display Size :  611.00mm
  • Resolution :  1920 X 1200 colored pixes
  • Brightness :  350cd/m^2

Mechanical

  • Dimensions : (H)14.71" x (W) 22.01" (D) 3.82"
  • Wegiht :  Less than 25 lbs
  • Mount :  CEDS console compatible mounting / rear VESA mount via bracket

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1

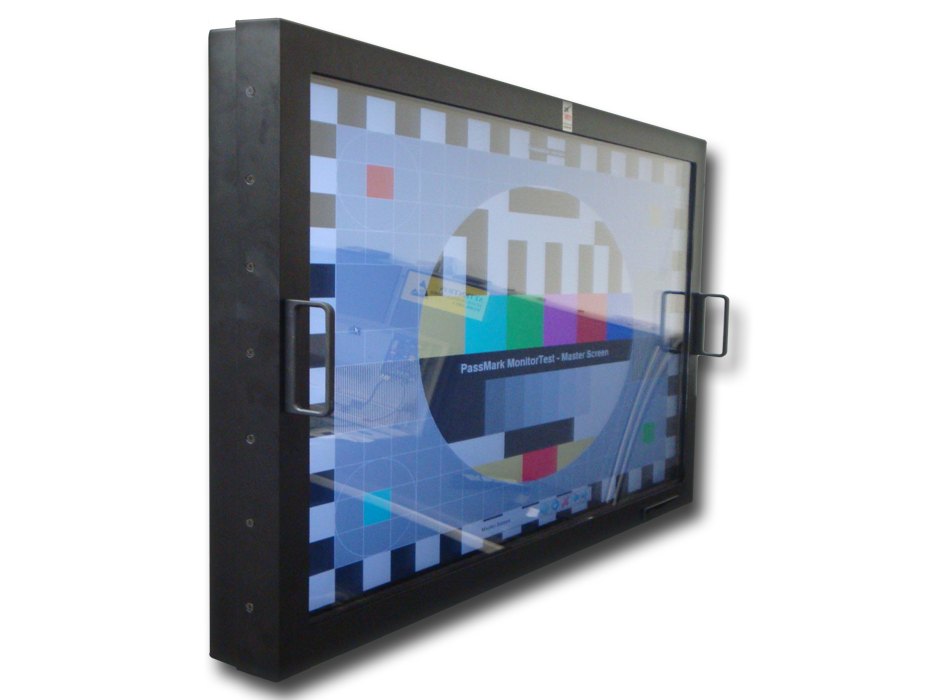

52 Inch Seismic Qualified Display.
P/N TE52.0WUXGA

LCD

  • Display Size :  1321.81
  • Resolution :  1920 X 1080 colored pixes
  • Brightness :  500cd/m^2

Mechanical

  • Dimensions : (H)30.30" x (W) 50.10" (D) 4.50"
  • Wegiht :  Less than 100 lbs
  • Mount :  Rear VESA mount

Qualifications (designed to)

  • Shock :  Mil-S901D
  • EMI :  Mil-STD-461E
  • Vibration :  Mil-STD-167-1a, Type 1
