The TECH line of Marine Grade Workstations range in sizes from 10.4 inch pc104 based computing solutions to full sized ATX style motherboard configurations used in our 20.1 inch computer workstations. All workstations are designed and tested to the same current specifcation standards as our full line of Rugged Marine Displays. Marine Grade Workstation products are designed to Shock (Mil-S-901D/Mil-STD-810E), vibration (Mil-STD-167-1a, Type-1), with optional EMI certifications to (Mil-STD-461E). This line of products is currently in process of receiving certification for its IP67 and IP status. Extended operating temperature available upon request.

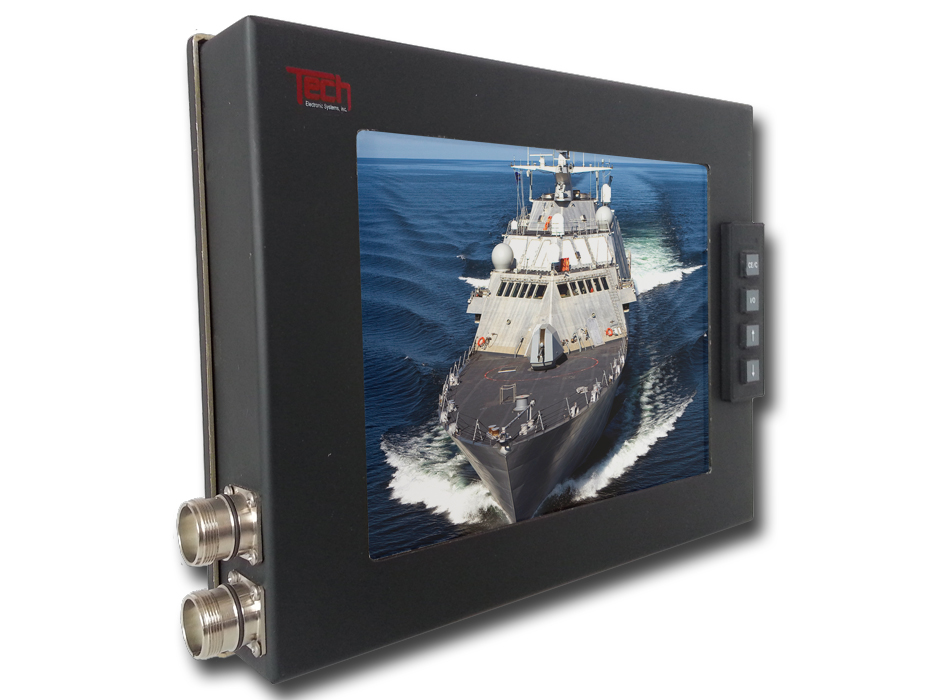

LCD
- Display Size : 10.4" diaganol
- Resolution : 640 X 480 colored pixes
- Brightness : 800cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)9.38" x (W) 11.94" (D) 2.00"
- Wegiht : Less than 10 lbs
- Mount : Rear VESA mount standard
Qualifications
- NEMA : NEMA 4X certified
- Ingress Protection : IP67 certified standard
- EMI (optional) : Mil-STD-461E

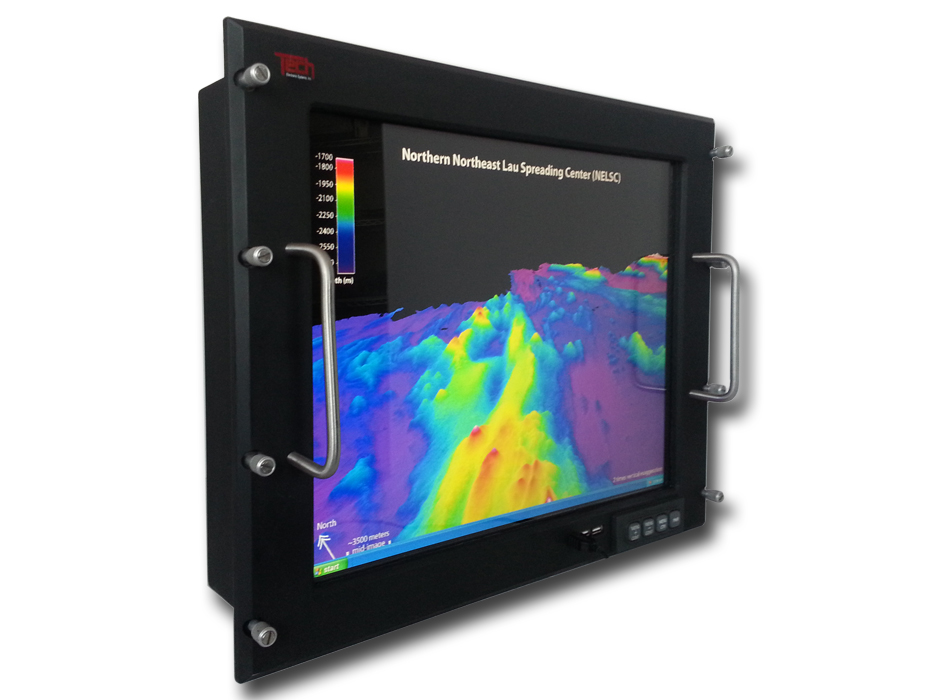

LCD
- Display Size : 19" diaganol
- Resolution : 1280 X 1024 colored pixes
- Brightness : 800cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)15.72" x (W) 19.00" (D) 4.50"
- Wegiht : Less than 30 lbs
- Mount : 19 inch rack mount standard
Qualifications
- NEMA : NEMA 4X certified
- Ingress Protection : IP67 certified standard
- EMI (optional) : Mil-STD-461E

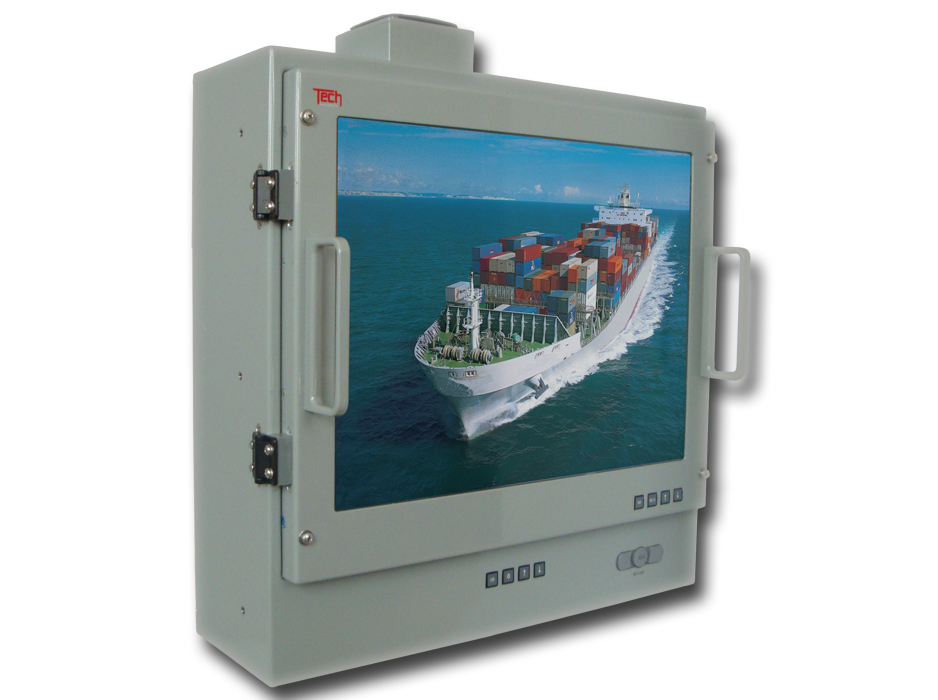

LCD
- Display Size : 20.1" diaganol
- Resolution : 1600 X 1200 colored pixes
- Brightness : 800cd/m^2
Computer
- Processor : 600 Mhz Intel standard, up to 2.5 Ghz Intel Core I7
- Processor (low power) : 1.1-1.6 Ghz Atom (2.64 watt TDP with 45nm process)
- Memory : 256 MB, DDR standard, up to 4 GB DDR2 with Intel Core I7
- Hard Disk : 8GB SLC solid state standard, up to 512GB SSD
Mechanical
- Dimensions : (H)20.00" x (W) 20.00" (D) 6.85"
- Wegiht : Less than 40 lbs
- Mount : Side mounting/ 19" rack mount optional
Qualifications
- NEMA : NEMA 4X certified
- Ingress Protection : IP67 certified standard
- EMI (optional) : Mil-STD-461E
